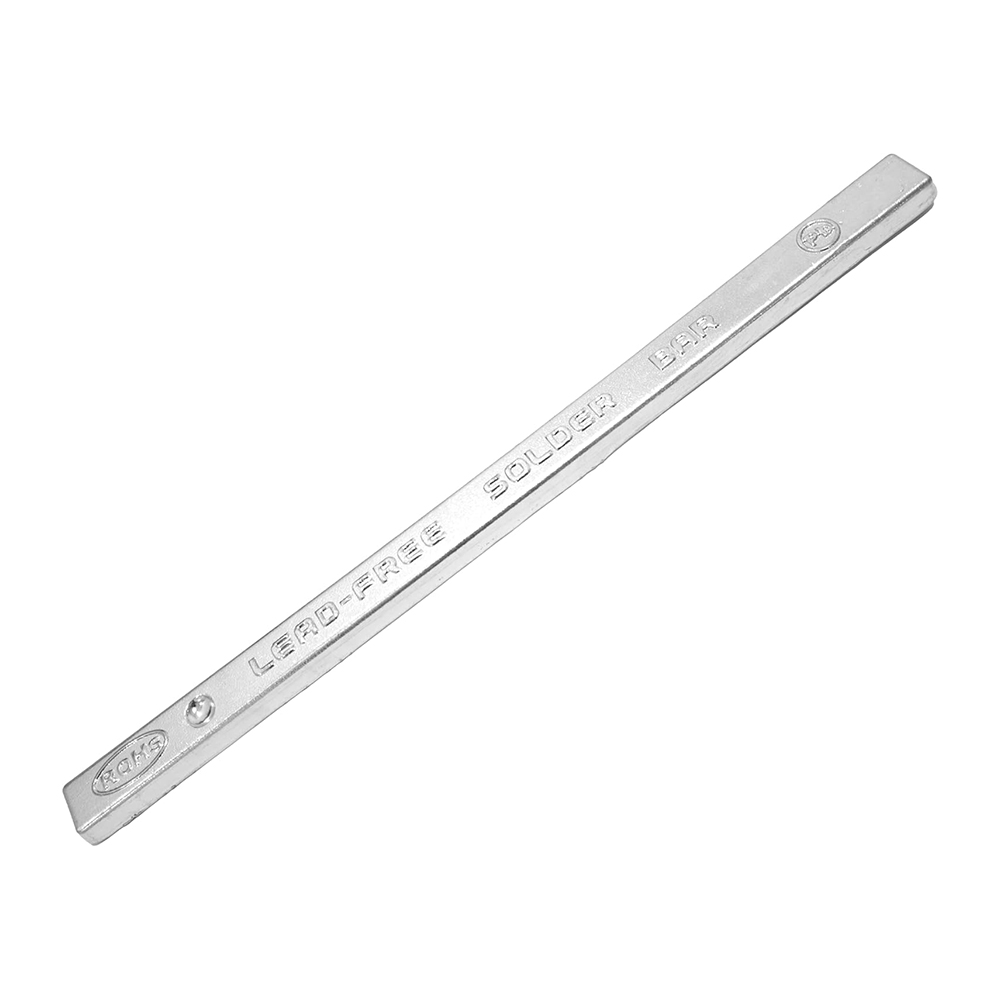

KEY-606 Lead-Free Solder Bars
Product Highlights
| Less Waste Residue | Antioxidant | Low Viscosity and Good Fluidity After Melting |
| Smooth, Bright Well-Formed Fillets | Icicle-Free and Bridge-Free Soldering | Good Electrical and Thermal Conductivity |
Product?Features
KEY-606 lead-free soldering tin bar is a product specially designed to meet the needs of modern environmentally friendly soldering. It has a lead-free and environmentally friendly formula and has passed the EU RoHS certification. The tin (Sn) content is 99.3% and the copper (Cu) content is 0.7%. This precise alloy ratio gives the tin bar excellent soldering performance and good oxidation resistance.
Product Usage
It is suitable for soft soldering in the electronics industry, wave soldering, dip soldering and other precision welding, special welding processes, spraying, tinning, etc. in various industries such as radiators and hardware.
Physical Parameters
| Item | Parameters |
| Melting Point | 227 ℃ |
| Density | 7.30 g/cm3? |
| Tensile Strength | 30 Mpa |
| Elongation | 45 % |
| Hardness | 13 HB |
| Resistivity | 13 μΩ·cm |
Packaging Specifications
500 g/piece, 20 kg/box
